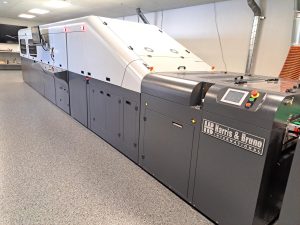

The Harris & Bruno ZRX is an amazing machine!
Whilst visiting HB in the US, the CyanX team was able to see the machine running production jobs in the innovation centre at the manufacturer’s headquarters. The ZRX is a digital embellishment press that can flood coat, spot coat, embellish and foil – better still it can do all of this on uncoated stocks, so no need to laminate. All this, from just one machine!
Just look at the incredible detail on the Octopus image laid down on the H&B ZRX. Just one example of what can be achieved on this machine.
What you need to know…
- No lamination of substrates required; embellish on uncoated media in a single pass.
- AQ and UV flood coating applications.
- Flat and tactile coating and foil effects; exclusive new xMatte and xFoil effects.
- A VisionMatrix scanner registers and compensates for any digital distortion on every single sheet for high quality output.
- Coating speed: 61 metres per minute (specialised coatings/substrates and embellishment may require reduced speeds); B2 landscape flood coat only – up to 6300 sheets per hour; B2 landscape spot coat – up to 4200 sheets per hour; B2 landscape foil – up to 2300 sheets per hour.
- Foil speed: up to 2300 sheets per hour.
- Substrate thickness: maximum: 0.60 mm, minimum: 0.15 mm.
- Substrate Format size: maximum 1066 x 750 mm, minimum: 420 x 297 mm.
- Set up times: flood coating – automated set up is five minutes, automated wash up is 10 minutes; spot coating automated set up is 10 minutes, automated wash up is five minutes.
- Floor space requirement: 13.7 x 2.1 x 2 metres.
#ZRX #FloodCoat # DigitalInkjetSpotCoat #NoLamination #Embellishments #Harris&Bruno #Cyanx
10th February 2025
